    SLP74AHCT541
    OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

        The SLP74AHCT541 is octal buffer/line driver with 3-state outputs.

        The 3-state control gate is a two-input AND gate with active-low inputs so that if either output-enable (OE(———0 or OE(———1) input is high, all corresponding outputs are in the high-impedance state. The outputs provide non inverted data when they are not in the high-impedance state.


    Main feature

    • Inputs accept voltages higher than VCC

    • Balanced propagation delays

    • TTL input levels

    • ESD protection:

    • HBM Exceeds 2000V

    • CDM Exceeds1000V

    • Latch-up performance exceeds 100mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

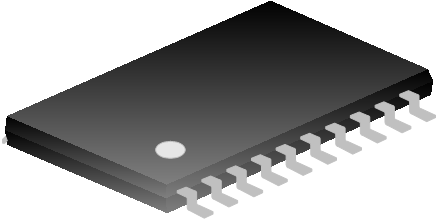

    SLP74AHCT541JT TSSOP-20-225-0.65 AHCT541 Halogen free Tube
    SLP74AHCT541JTTR TSSOP-20-225-0.65 AHCT541 Halogen free Tape & Reel

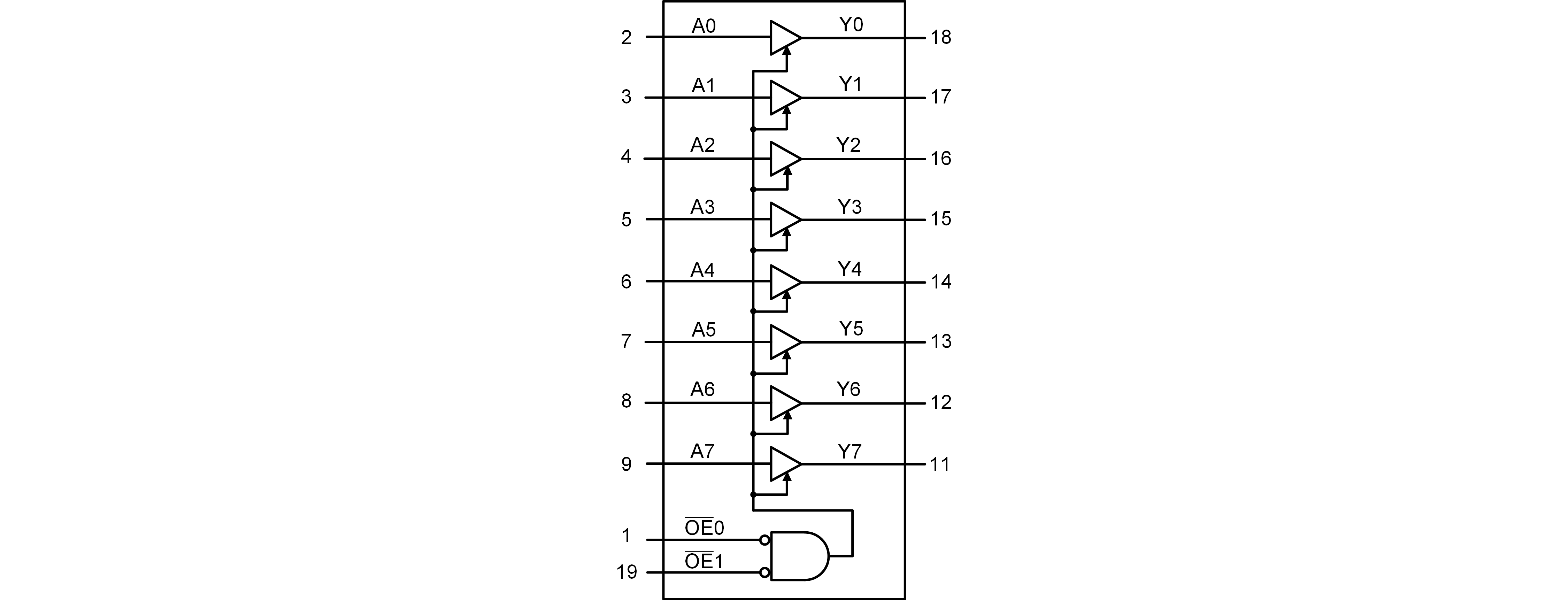

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74AHCT541 0 1970-01-01 SLP74AHCT541 Brief Datasheet
