The SLP74AHCT1G125 are Si-gate CMOS devices.

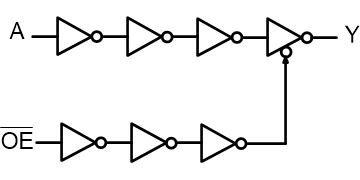

The SLP74AHCT1G125 provide one non-inverting buffer/line driver with 3-state output. A HIGH at OE causes the output to assume a high-impedance OFF-state.
Balanced propagation delays
TTL input levels
ESD protection:
HBM Exceeds 2000V
CDM Exceeds 1000V
Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and from -40°C to +125°C
Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
---|---|---|---|---|---|
SLP74AHCT1G125KMTR | SOT-353-5L | SH | Halogen free | Tape & Reel | |
SLP74AHCT1G125KBTR | SOT-23-5L | HG25 | Halogen free | Tape & Reel |
title | Types of | Size (KB) | date | Download the latest English version |
---|---|---|---|---|
SLP74AHCT1G125 | 0 | 1970-01-01 | SLP74AHCT1G125 Brief Datasheet |
