    SLP74LVC14A
    HEX INVERTING SCHMITT TRIGGER WITH 5 V TOLERANT INPUT

         The SLP74LVC14A hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation.

         The inputs switch at different points for positive and negative-going signals. The difference between the positive voltage VT+ and the negative voltage VT- is defined as the input hysteresis voltage VH.

         Inputs can be driven from either 3.3V or 5V devices. This feature allows  the use of this device as a translator in mixed 3.3-V and 5-V system environment.


    Main feature

    • Inputs accept voltages up to 5.5V

    • Operate from 1.2V to 3.6V

    • Direct interface with TTL levels

    • CMOS low power consumption

    • ESD protection:

    • HBM exceeds 2000V

    • CDM exceeds 1000V

    • Latch-up performance exceeds 100mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC14AEB SOP-14-225-1.27 74LVC14A Halogen free Tube
    SLP74LVC14AEBTR SOP-14-225-1.27 74LVC14A Halogen free Tape & Reel
    SLP74LVC14AJY TSSOP-14-225-0.65 LVC14A Halogen free Tube
    SLP74LVC14AJYTR TSSOP-14-225-0.65 LVC14A Halogen free Tape & Reel

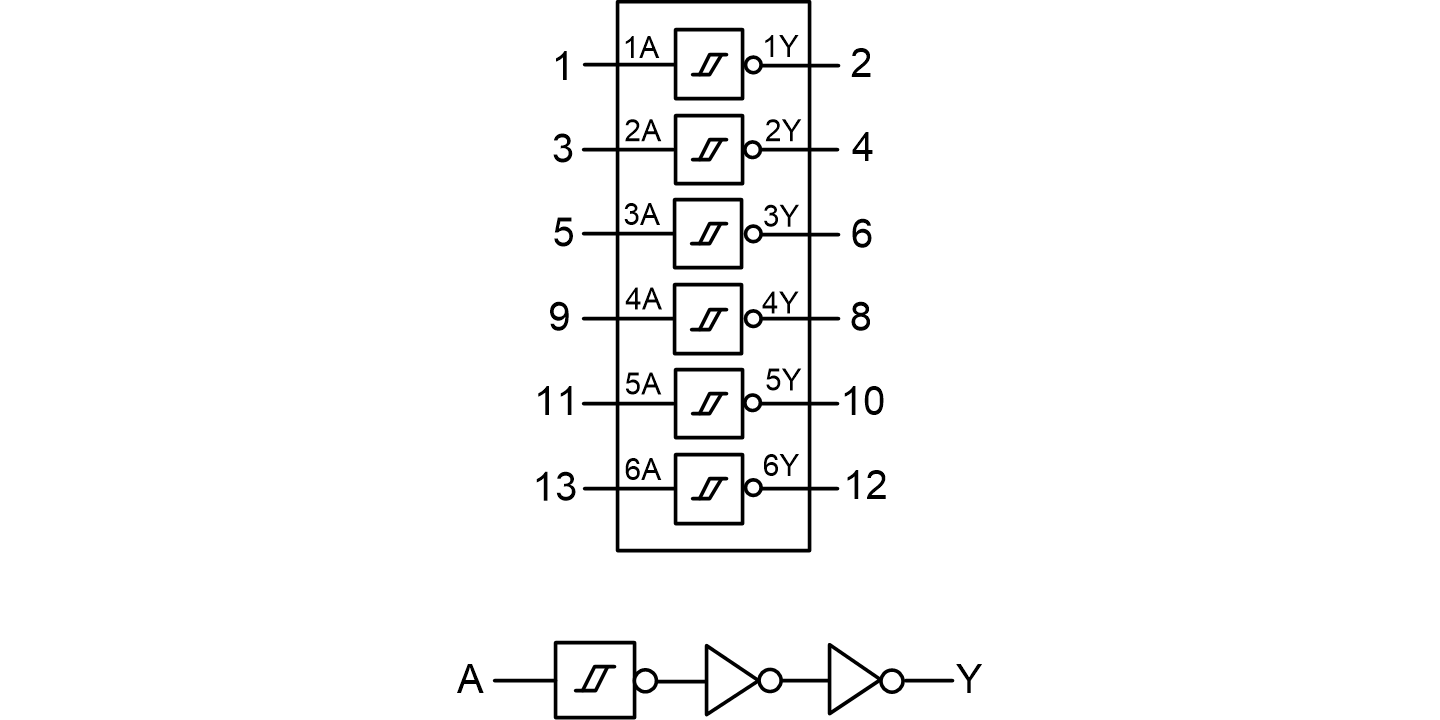

    Block Diagram

    SLP74LVC14A （1440&720）.png



    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVC14A 0 1970-01-01 SLP74LVC14A Brief Datasheet
