      SA324
      QUADRUPLE OPERATIONAL AMPLIFIERS

      The SA324 consist of four independent, high-gain, frequency- compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V, and VCC is at least 1.5V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.

      Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground. Low Input Bias and Offset Parameters.


      Main feature

      Wide Single−Supply Range: 3V~32V

      Low Supply-Current Drain, 0.7mA Typ

      Common-mode input voltage range includes ground

      Low Input Bias and Offset Parameters

      Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

      Open-Loop Differential Voltage Amplification: 100V/mV

      Internal Frequency Compensation


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SA324SB SOP-14-225-1.27 SA324SB Halogen free Tube
      SA324SBTR SOP-14-225-1.27 SA324SB Halogen free Tape&Reel
      SA324JY TSSOP-14-225-0.65 SA324JY Halogen free Tube
      SA324JYTR TSSOP-14-225-0.65 SA324JY Halogen free Tape&Reel

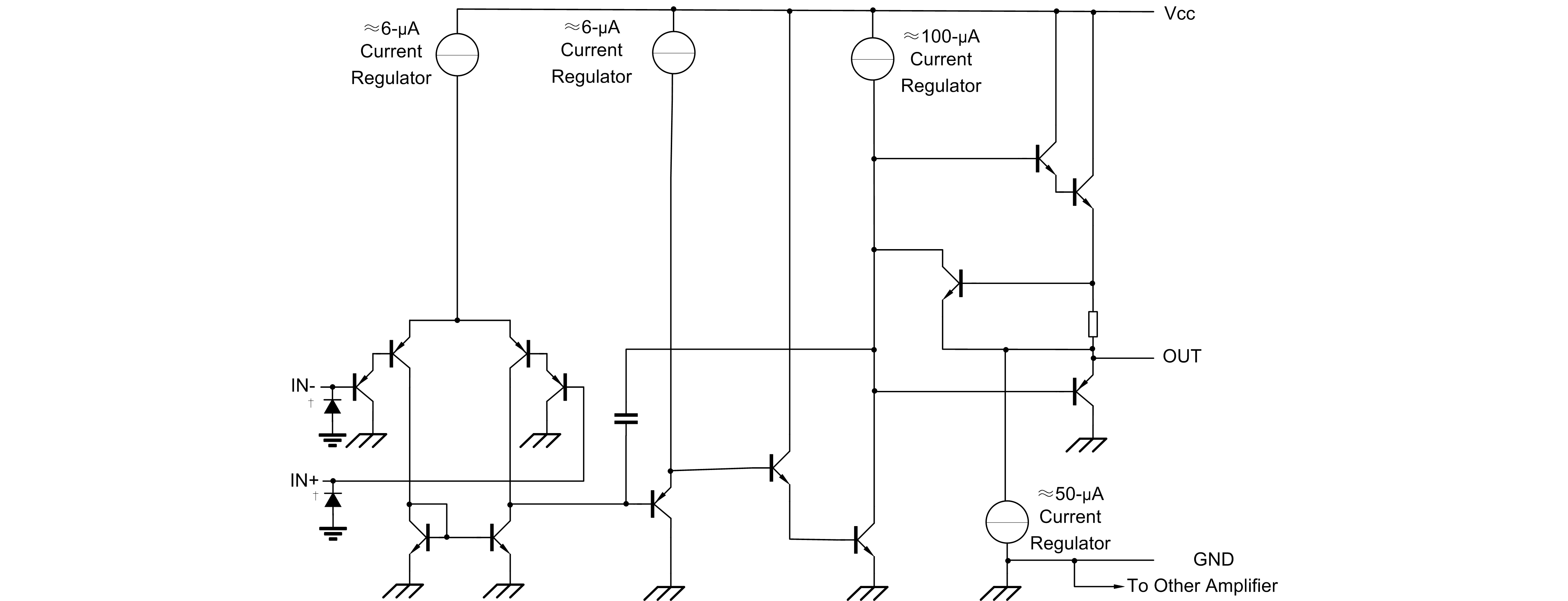

      Block Diagram

      SA324 英文.png

      Documents
      title Types of Size (KB) date Download the latest English version
      SA324 0 1970-01-01 SA324 Datasheet
