    SA393
    DUAL COMPARATORS

    The SA393 devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

    Main feature

    Wide Single−Supply Range: 2V~30V

    Low Supply-Current Drain, 0.45mA Typ

    Common-mode input voltage range includes ground

    Low Input Bias and Offset Parameters

    Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36V

    Open-Loop Differential Voltage Amplification: 200V/mV

    Internal Frequency Compensation


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

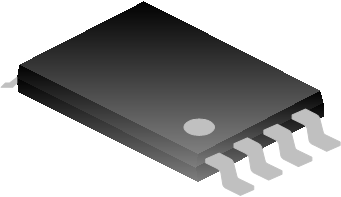

    SA393SA SOP-8-225-1.27 SA393SA Halogen free Tube
    SA393SATR SOP-8-225-1.27 SA393SA Halogen free Tape&Reel
    SA393JR TSSOP-8-225-0.65 SA393 Halogen free Tube
    SA393JRTR TSSOP-8-225-0.65 SA393 Halogen free Tape&Reel

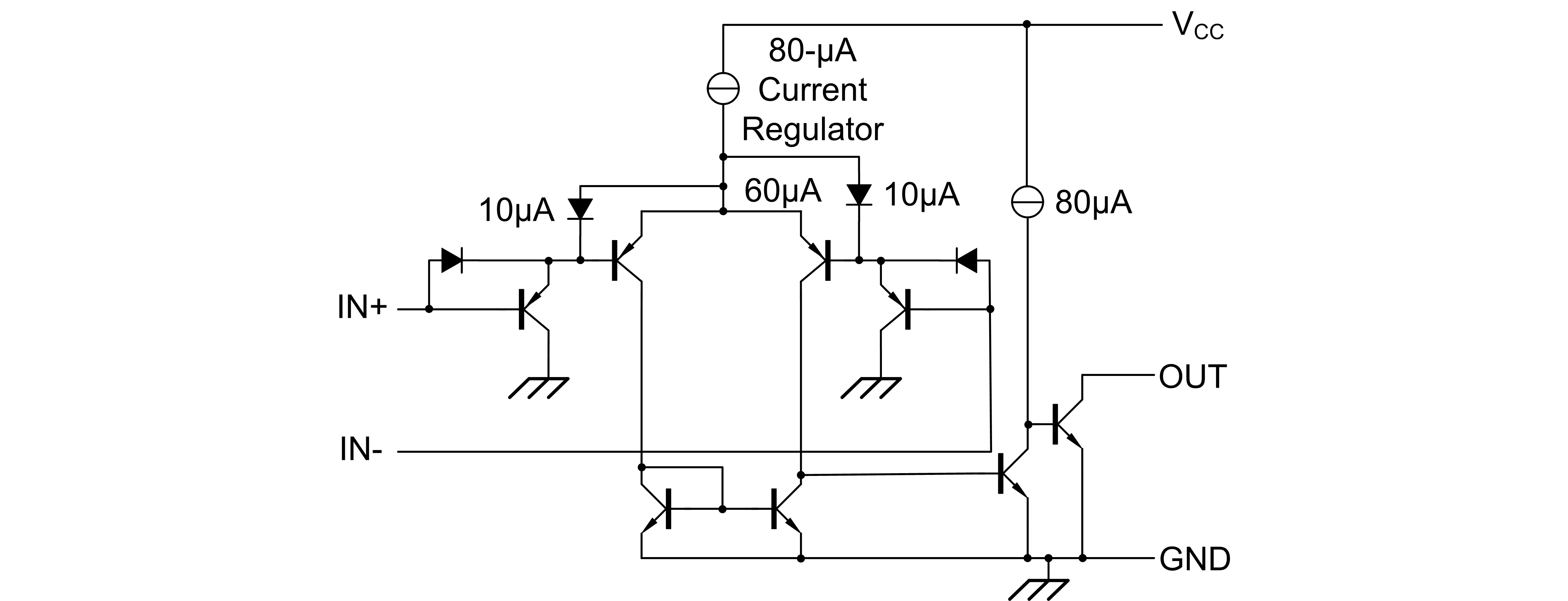

    Block Diagram

    SA393 英文.png

    Documents
    title Types of Size (KB) date Download the latest English version
    SA393 0 1970-01-01 SA393 Datasheet
