    SDM02M60DAE/DAS
    INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/2A

        SDM02M60DAE/DAS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

        SDM02M60DAE/DAS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.

        SDM02M60DAE/DAS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


    Main feature

    • Built-in 600V/2A fast recovery MOSFET

    • Built-in high-voltage Gate driver circuit (HVIC)

    • Built-in under-voltage protection

    • Built-in bootstrap diode

    • Built-in Negative Temperature Coefficient (NTC) resistor for temperature sensing

    • Compliant with 3.3V and 5V MCU interface, active high

    • 3 independent negative DC-link terminals for inverter current sensing

    • Optimal adapted for low EMI

    • Insulation class: 1500Vrms/min


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDM02M60DAE DIP-23E SDM02M60DAE Pb free Tube
    SDM02M60DAS SOP-23H SDM02M60DAS Pb free Tube
    SDM02M60DASTR SOP-23H SDM02M60DAS Pb free Tape&Reel

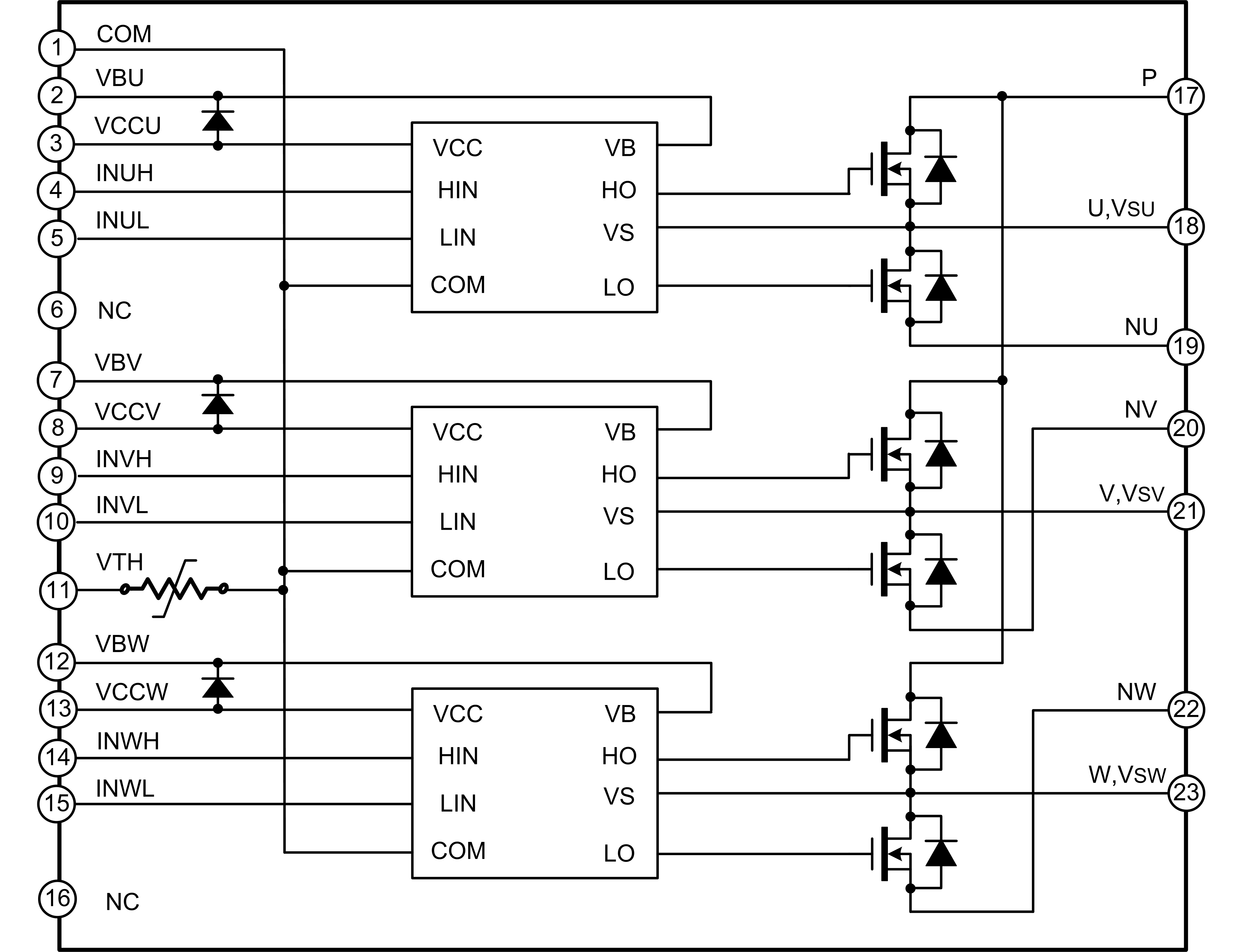

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDM02M60DAE(DAS) 0 1970-01-01 SDM02M60DAE(DAS) Brief Datasheet
