    SDM05M60DBE/DBS
    INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/5A

        SDM05M60DBE/DBS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

        SDM05M60DBE/DBS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.

        SDM05M60DBE/DBS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


    Main feature

    • Built-in 600V/5A fast recovery MOSFET

    • Built-in high-voltage Gate driver circuit (HVIC)

    • Built-in under-voltage protection

    • Compliant with 3.3V and 5V MCU interface, active high

    • 3 independent negative DC-link terminals for inverter current sensing

    • Optimal adapted for low EMI

    • Insulation class: 1500Vrms/min


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDM05M60DBE DIP-23E SDM05M60DBE Pb free Tube
    SDM05M60DBS SOP-23H SDM05M60DBS Pb free Tube
    SDM05M60DBSTR SOP-23H SDM05M60DBS Pb free Tape&Reel

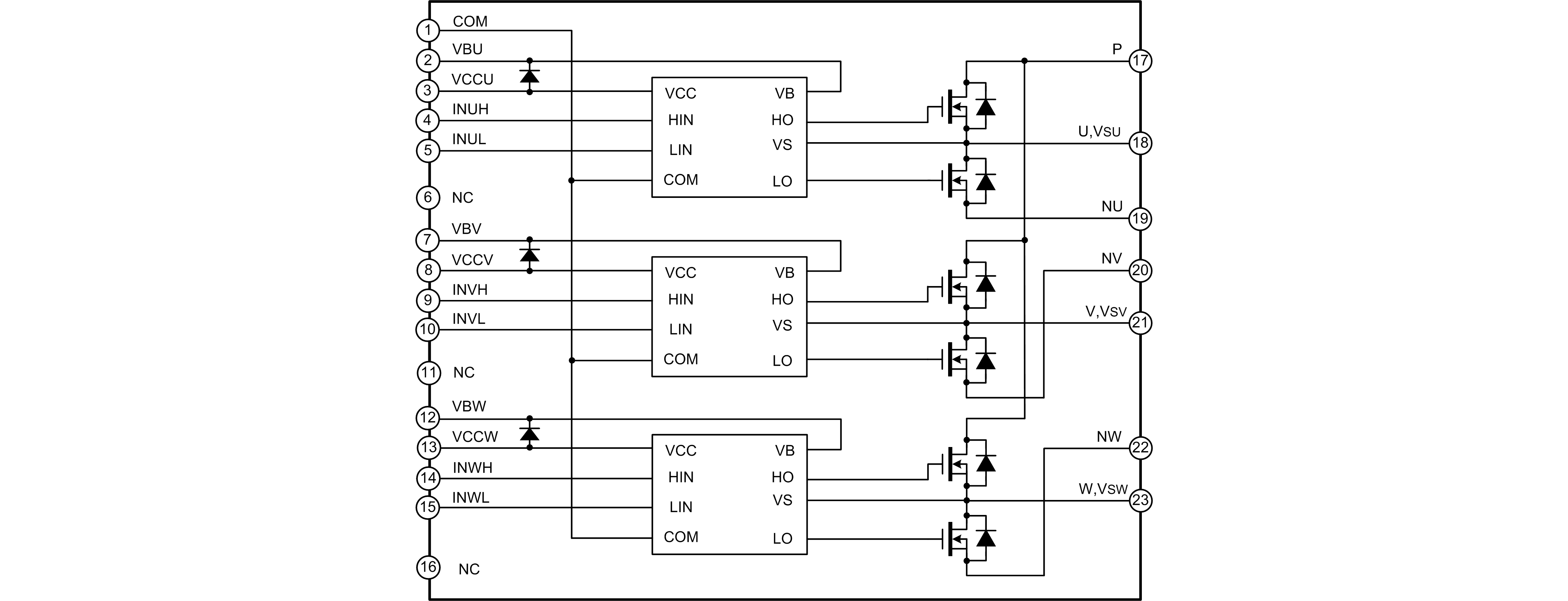

    Block Diagram

    SDM05M60DBE(DBS) 中英文.png

    Documents
    title Types of Size (KB) date Download the latest English version
    SDM05M60DBE/DBS 0 1970-01-01 SDM05M60DBE/DBS Brief Datasheet
