    SLP74AHCT244
    OCTAL BUFFER DRIVER WITH 3-STATE OUTPUTS

    The SLP74AHCT244 is an octal non-inverting buffer/line driver .This device is designed for 4.5-V to 5.5-V VCC operation.

    The 3-state outputs are controlled by the output enable inputs（nOE(——）.When /OE is HIGH, the outputs go to the high impedance OFF-state.


    Main feature

    • Inputs can accept voltage higher than Vcc

    • Operates from 4.5V to 5.5V

    • Direct interface with TTL levels

    • ESD protection:

    • HBM Exceeds 2000V

    • CDM Exceeds 1000V

    • Latch-up performance exceeds 250mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74AHCT244EN SOP-20-375-1.27 74AHCT244 Halogen free Tube
    SLP74AHCT244ENTR SOP-20-375-1.27 74AHCT244 Halogen free Tape&Reel
    SLP74AHCT244JT TSSOP-20-225-0.65 74AHCT244 Halogen free Tube
    SLP74AHCT244JTTR TSSOP-20-225-0.65 74AHCT244 Halogen free Tape & Reel

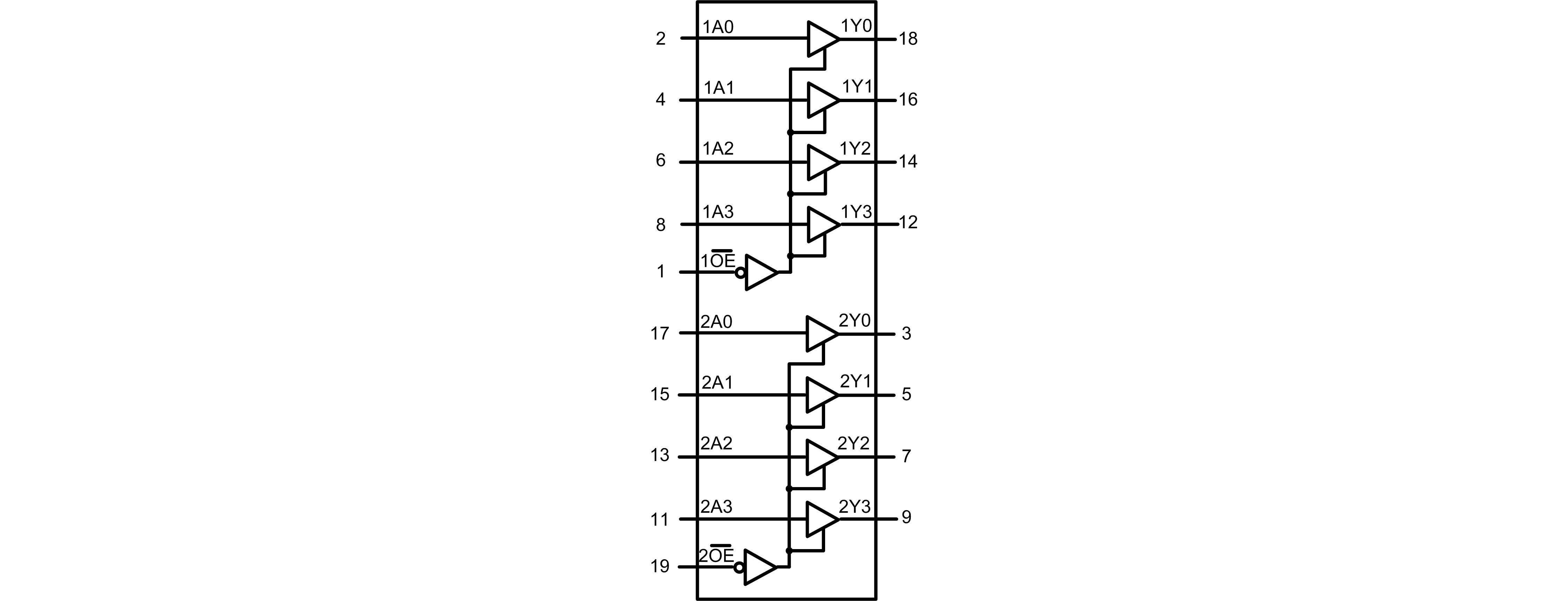

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74AHCT244 0 1970-01-01 SLP74AHCT244 Brief Datasheet
