    SAP072B
    DUAL OPERATIONAL AMPLIFIERS

    The SAP072B consist of two independent, high-voltage JFET-input, frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 10V to 30V.

    The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient.


    Main feature

    • Wide Single−Supply Range: 10V~30V

    • Wide Common-Mode and Differential Voltage Ranges

    • Low Input Bias and Offset Currents

    • High-Input Impedance: JFET Input Stage

    • Common-Mode Input Voltage Range Includes VCC+

    • Internal Frequency Compensation


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SAP072BSA SOP-8-225-1.27 SAP072B Halogen free Tube
    SAP072BSATR SOP-8-225-1.27 SAP072B Halogen free Tape&Reel

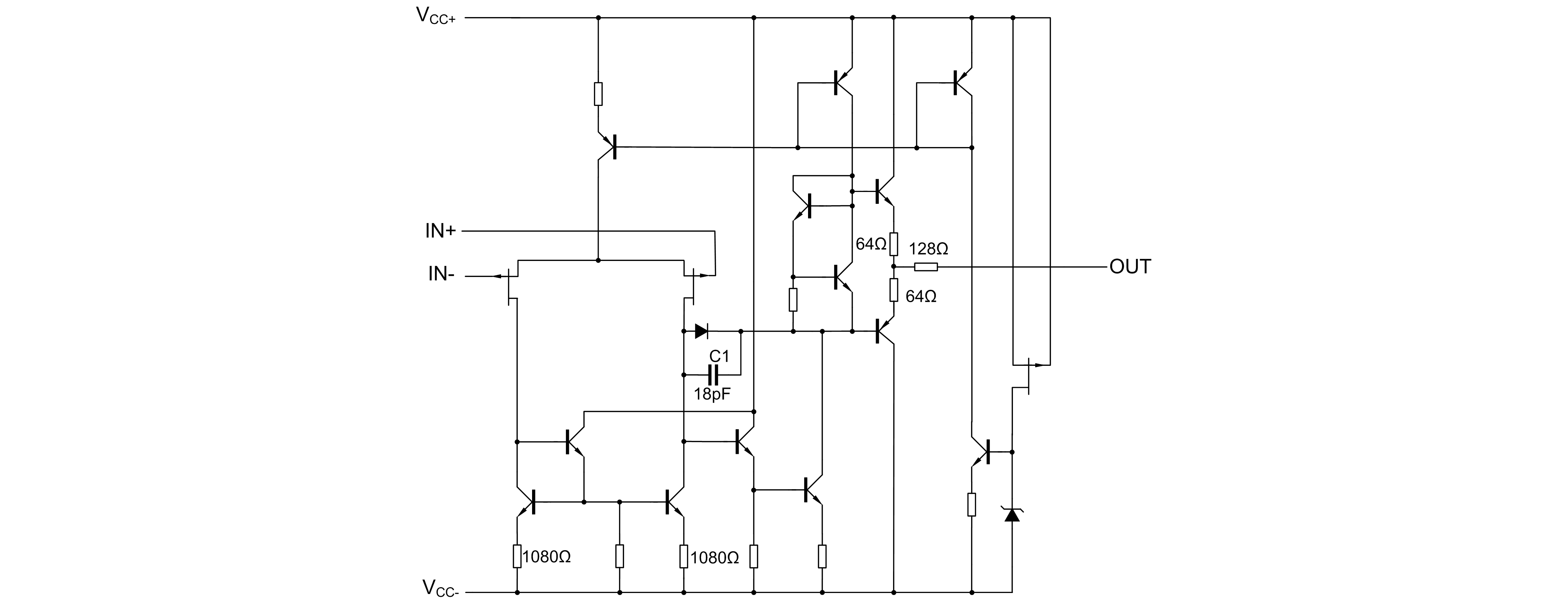

    Block Diagram

    SAP072B .png

    Documents
    title Types of Size (KB) date Download the latest English version
    SAP072B 0 1970-01-01 SAP072B Datasheet
