600V/3A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SDM03C60DB2 is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

    The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM03C60DB2 is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature

  • Built-in 600V/3A fast recovery MOSFET

  • Built-in high-voltage integrated circuit of gate driver

  • Built-in under voltage protections, over current protection and temperature output

  • Built-in shut-down input

  • Built-in inter-lock function

  • Built-in bootstrap diode with current limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminals for inverter current detection

  • Isolation rating: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM03C60DB2 DIP-25B SDM03C60DB2 Halogen Free Tube

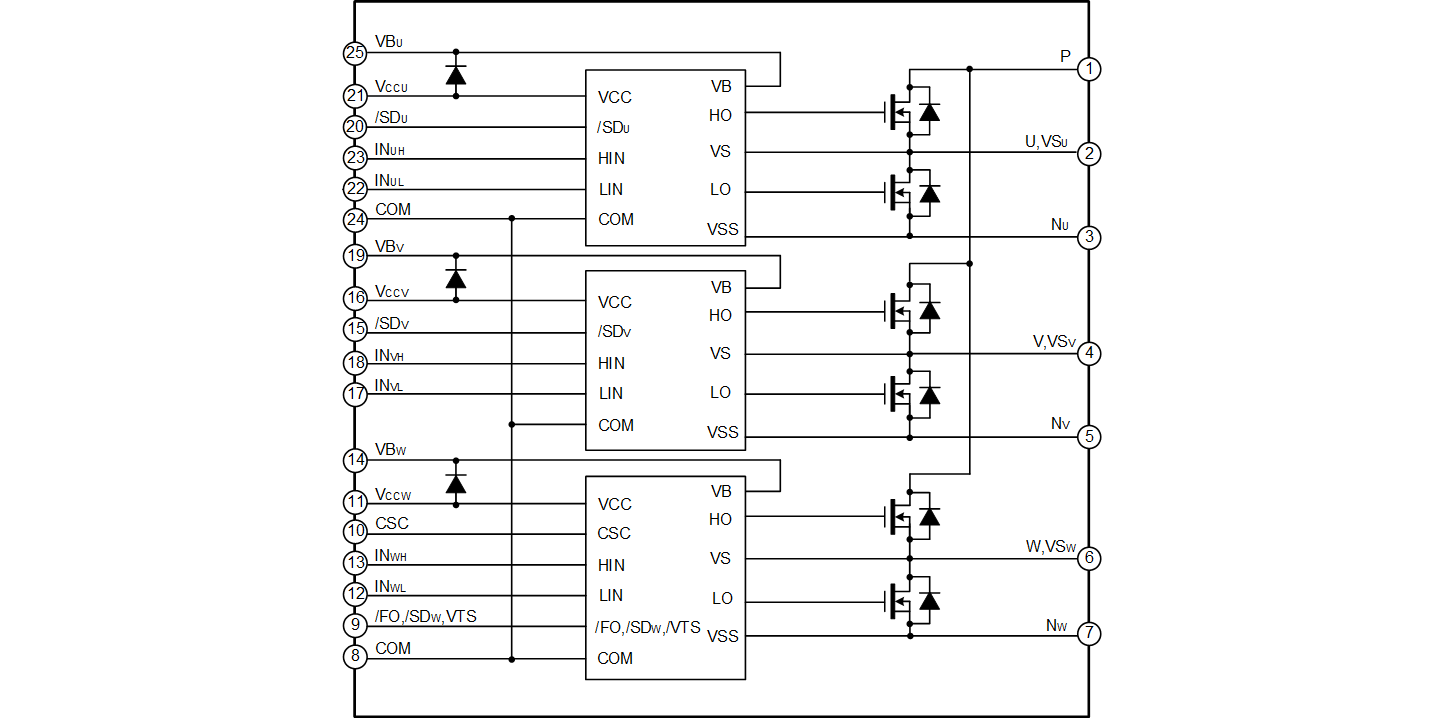

Block Diagram
