      SAP2003
      DARLINGTON TRANSISTOR ARRAYS

      The SAP2003 is a high-voltage, high-current Darlington transistor array. It consists of seven NPN Darlington pairs, all units feature a common emitter. The device has a 2.7kΩ series base resistor for each Darlington pair for operation directly with TTL and 5V CMOS devices.

      The SAP2003 is capable of sinking up to 500mA, and the maximum operating voltage reaches 50V. The Darlington pairs may be connected in parallel for higher current capability.


      Main feature

      Wide operating voltage range

      Seven Darlingtons

      High voltage outputs (50V)

      High current outputs (500mA for single output)

      TTL and CMOS compatible inputs

      Built-in clamp diodes for inductive loads


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SAP2003SC SOP-16-225-1.27 SAP2003SC Halogen free Tube
      SAP2003SCTR SOP-16-225-1.27 SAP2003SC Halogen free Tape&Reel
      SAP2003DC DIP-16-300-2.54 SAP2003DC Halogen free Tube
      SAP2003JS TSSOP-16-225-0.65 SAP2003JS Halogen free Tube
      SAP2003JSTR TSSOP-16-225-0.65 SAP2003JS Halogen free Tape & Reel

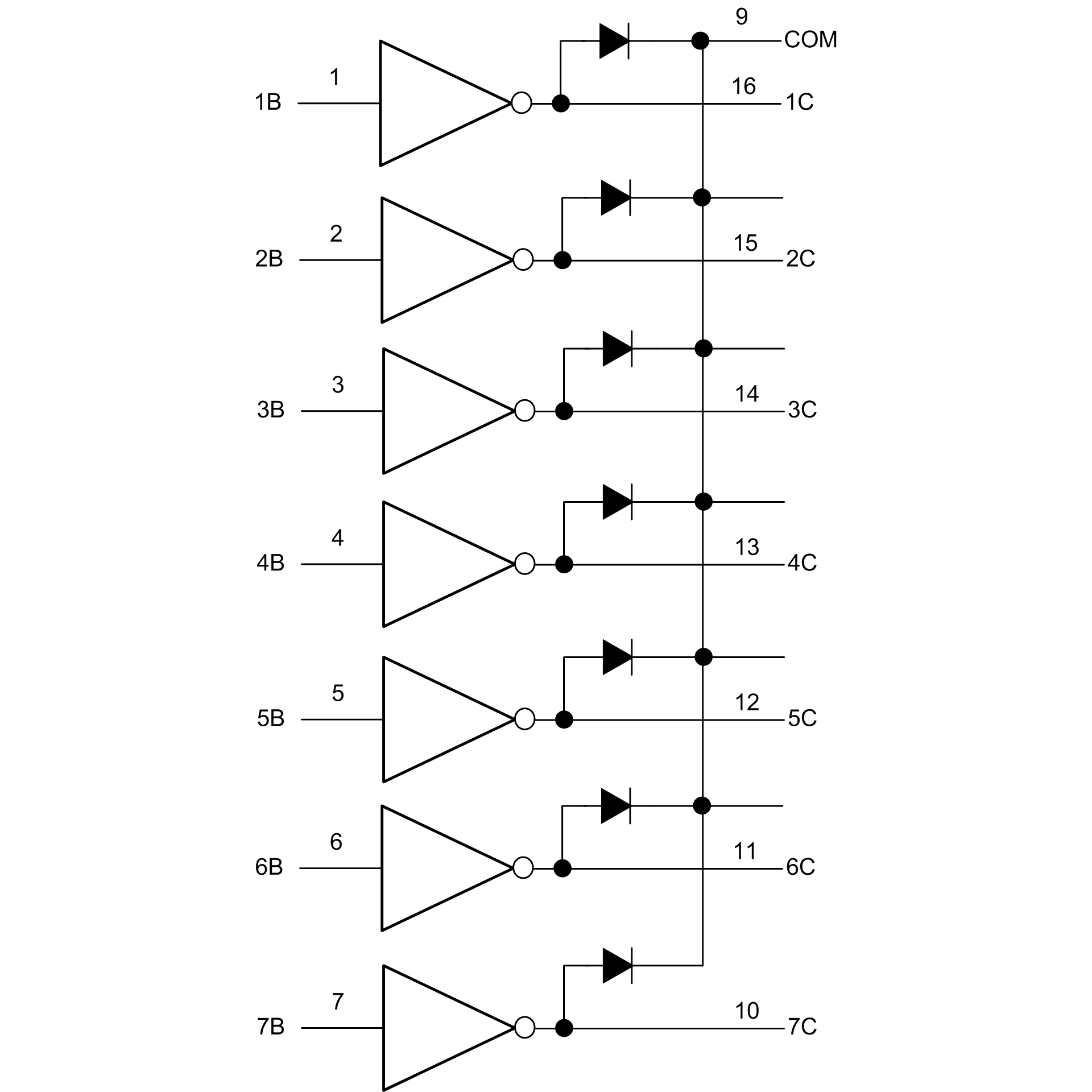

      Block Diagram


      Documents
      title Types of Size (KB) date Download the latest English version
      SAP2003 0 1970-01-01 SAP2003 Brief Datasheet
