The SLP74AVCH2T45 is a 2-bit non-inverting bus transceiver uses two separate configurable power-supply rails. It features two data input-output ports (nA and nB), a direction control input(DIR) and dual supply pins (VCC(A) and VCC(B) ). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins nA and DIR are referenced to VCC(A) and pins nB are referenced to VCC(B).
The device is fully specified for partial power-down applications using I OFF .The I OFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down.
When either VCC(A) or VCC(B) are at GND level, both A and B are in the high-impedance OFF-state.
The device has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. It does not recommend using pull-up or pull-down resistors with the bus-hold circuitry.
Wide supply voltage range:
VCC(A):0.8V to 3.6V
VCC(B):0.8V to 3.6V
Bus hold on data inputs
I/Os are 3.6V Tolerant
I OFF circuitry provides partial Power-down mode operation
Maximum data rates:
300 Mbps (1.8V to 3.3V translation)
220 Mbps (<1.8V to 3.3V translation)
200 Mbps (translate to 2.5V or 1.8V)
150 Mbps (translate to 1.5V)
100 Mbps (translate to 1.2V)
ESD protection:
HBM Exceeds 8000V
CDM Exceeds 1000V
Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and -40°C to +125°C
Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
---|---|---|---|---|---|
SLP74AVCH2T45JWTR | VSSOP-8-100-0.5 | 2T45 | Halogen free | Tape&Reel |

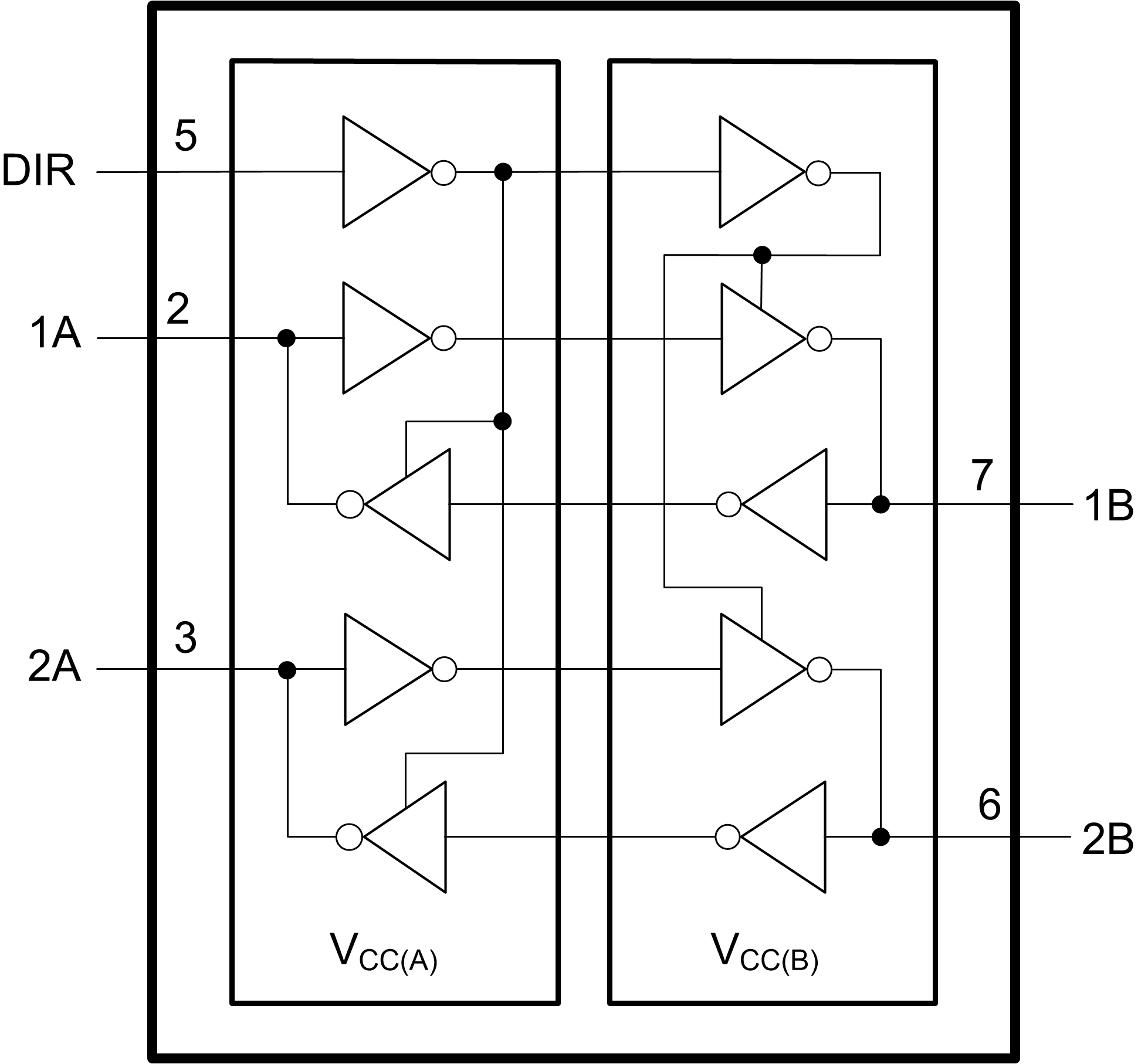

Fig.1 Logic symbol
