    SLP74LVC2G14
    DUAL INVERTING SCHMITT TRIGGER

        The SLP74LVC2G14 is a dual inverting buffer with Schmitt-trigger input. The Schmitt-trigger makes the input tolerant of slower pulse edge. The device is designed for 1.65V to 5.5V Vcc operation and performs the function Y=A(—).

        The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


    Main feature

    • 5V tolerant inputs for interlacing with 5V logic

    • Supports from 1.65V to 5.5V operation

    • CMOS low power consumption

    • Direct interface with TTL levels

    • ±24mA output driver (Vcc=3.0V)

    • ESD protection:

    • HBM exceeds 2000V

    • CDM exceeds 1000V

    • Latch up performance exceeds 250mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC2G14KETR SOT-363-6L SE Halogen free Tape & Reel
    SLP74LVC2G14KCTR SOT-23-6L 2G14 Halogen free Tape & Reel
    Block Diagram

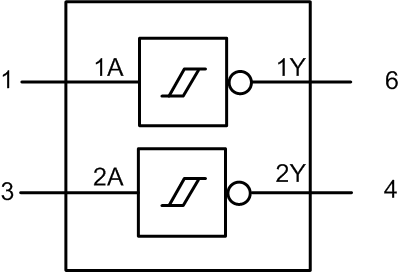

                     Fig.1 Function diagram

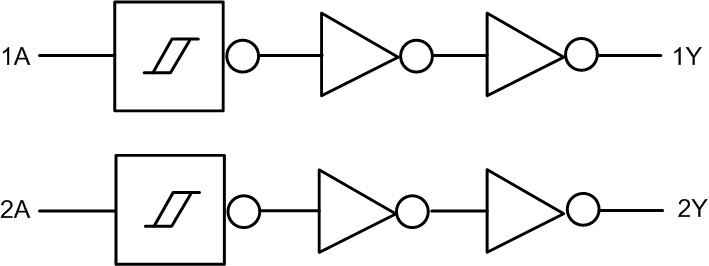

                          Fig.2 Logic diagram

    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74LVC2G14 0 1970-01-01 SLP74LVC2G14 Brief Datasheet
