The SLP74LVC1G00 is designed for 1.65-V to 5.5V VCC operation and provides the single 2-input NAND function which performs the Boolean function
or
.
This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Supports 1.65V to 5.5V Vcc operation
Input accept voltages up to 5.5V
±24mA output drive at 3.3V
CMOS low power consumption
ESD protection:
HBM Exceeds 2000V
CDM Exceeds 1000V
Latch-up performance exceeds 100mA
pecified from -40°C to +85°C and -40°C to +125°C
| Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
|---|---|---|---|---|---|
| SLP74LVC1G00KMTR | SOT-353-5L | SA | Halogen free | Tape & Reel |

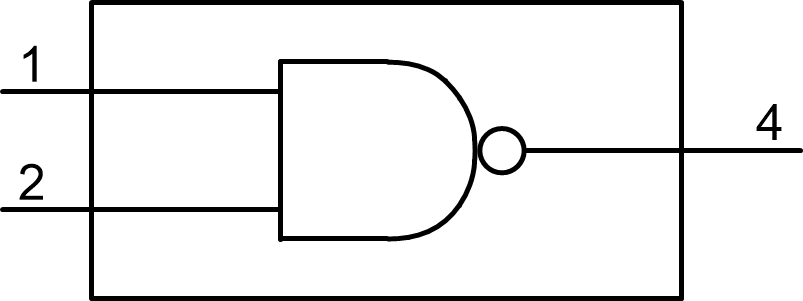

Fig.1 Function diagram

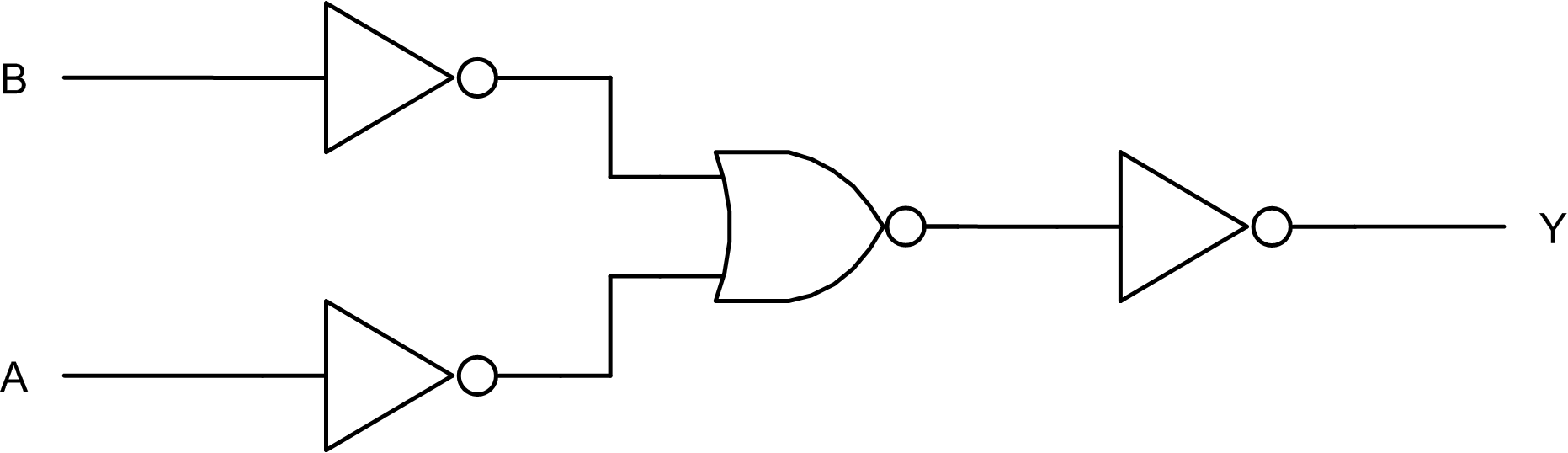

Fig.2 Logic diagram
