    SLP74AHC14
    HEX SCHMITT-TRIGGER INVERTERS

        The SLP74AHC14 is a high-speed Si-gate CMOS device. This device performs the Boolean function Y=A(—).

        The SLP74AHC14 contains six independent inverters. Each circuit functions as an independent inverter. Because of the Schmitt-Trigger action, the inverters are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.


    Main feature


    • Balanced propagation delays

    • All inputs have Schmitt-trigger actions

    • Inputs accept voltages higher than VCC

    • CMOS level input

    • ESD protection:

    •  HBM Exceeds 2000V

    •  CDM Exceeds 1000V

    • Latch-up performance exceeds 100mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

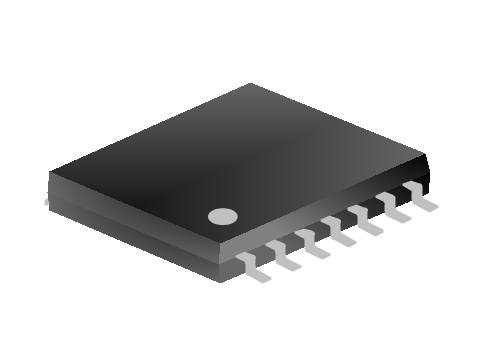

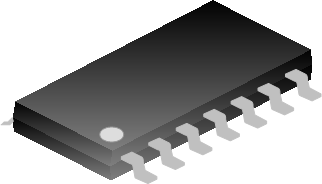

    SLP74AHC14EBTR SOP-14-225-1.27 AHC14 Halogen free Tape & Reel
    SLP74AHC14EB SOP-14-225-1.27 AHC14 Halogen free Tube
    Block Diagram

                               Fig.1 Function diagram

                        Fig.2 Logic diagram (one Schmitt trigger)

    Documents
    title Types of Size (KB) date Download the latest English version
    SLP74AHC14 0 1970-01-01 SLP74AHC14 Brief Datasheet
