    HIGH PRECISION CC/CV PRIMARY SIDE POWER SWITCH WITH INTEGRATED MOSFET

        SDH8592AS is a high performance off-line PSR power switch which operates in PFM to achieve high performance and high efficiency. It integrates a 650V MOSFET and high voltage startup to decrease physical volume. Both the output current and voltage are sensed by primary side signal process.

        SDH8592AS removes the need for secondary feedback circuitry while achieving excellent line and load regulation. It also eliminates the need for loop compensation while maintaining stability over all operation conditions.

    Main feature

    • Primary-side Feedback Eliminates Opto-isolators

    • High Precision Constant Voltage and Current Regulation at Universal AC Input

    • Ultra Low Start-up Current

    • Programmable CV and CC Regulation

    • Programmable Cable Drop Compensation

    • Integrated 650V MOSFET

    • Integrated High Voltage Startup

    • Less Than 75mW Standby Power

    • Built-in Line Voltage and Primary Winding Inductance Compensation

    • Built in Leading Edge Blanking(LEB)

    • No External Compensation Required

    • On-chip OTP

    • VCC Over Voltage Protection

    • Output Over Voltage Protection

    • VCC Under Voltage Lockout with Hysteresis(UVLO)

    • Cycle-by-Cycle Current Limiting

    • Output Short Circuit Protection

    • Over Current Protection

    • Maximum on time protection

    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH8592ASTR SOP-7-225-1.27 SDH8592AS Halogen free Tape & Reel
    SDH8592AS SOP-7-225-1.27 SDH8592AS Halogen free Tube

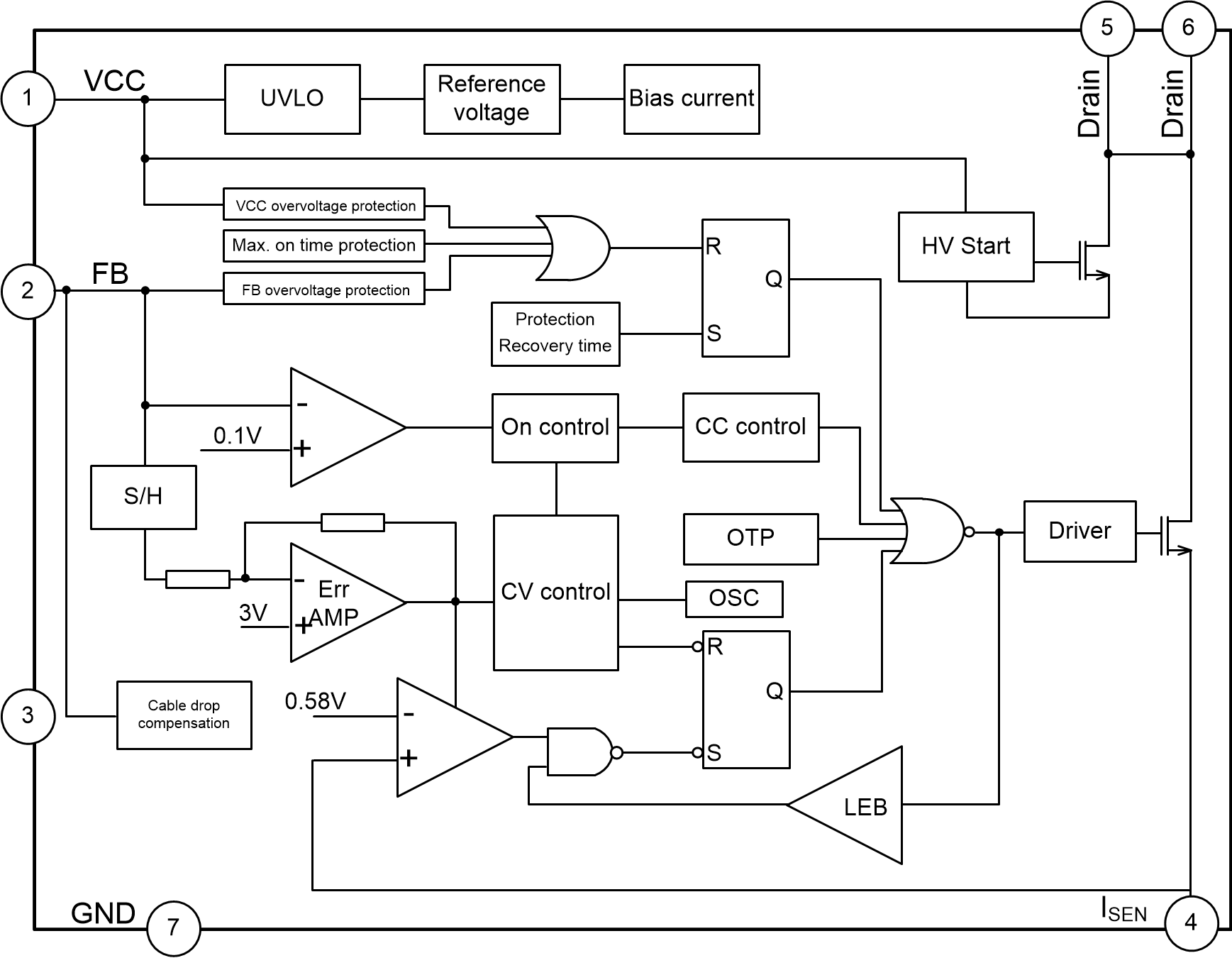

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SDH8592AS 0 1970-01-01 SDH8592AS Brief Datasheet
