    SLP74LVC74A
    DUAL POSITIVE-EDGE TRIGGER D-TYPE FLIP-FLOP WITH SET AND RESET

         The SLP74LVC74A is a low-power dual positive-edge-triggered D-type flip-flop With set and reset.

        A low level at the set S(—)D  or reset R(—)D inputs sets or resets the outputs, regardless of the levels of the other inputs. When S(—)D  and R(—)D are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Information on the data input is transferred to the Q output on the LOW-to-HIGH transition of the clock pulse. The D input must be stable one set-up time prior to the LOW-to-HIGH clock transition for predictable operation.

    Schmitt trigger action at all inputs makes the circuit highly tolerant of slower input rise and fall times.


    Main feature

    • Wide supply voltage range from 1.2V to 3.6V

    • Inputs Accept Voltages to 5.5V

    • ESD protection:

    • HBM Exceeds 2000V

    • CDM Exceeds 1000V

    • Latch-up performance exceeds 250mA

    • Specified from -40°C to +85°C and from -40°C to +125°C


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SLP74LVC74AJY TSSOP-14-225-0.65 LVC74A Halogen free Tube
    SLP74LVC74AJYTR TSSOP-14-225-0.65 LVC74A Halogen free Tape & Reel

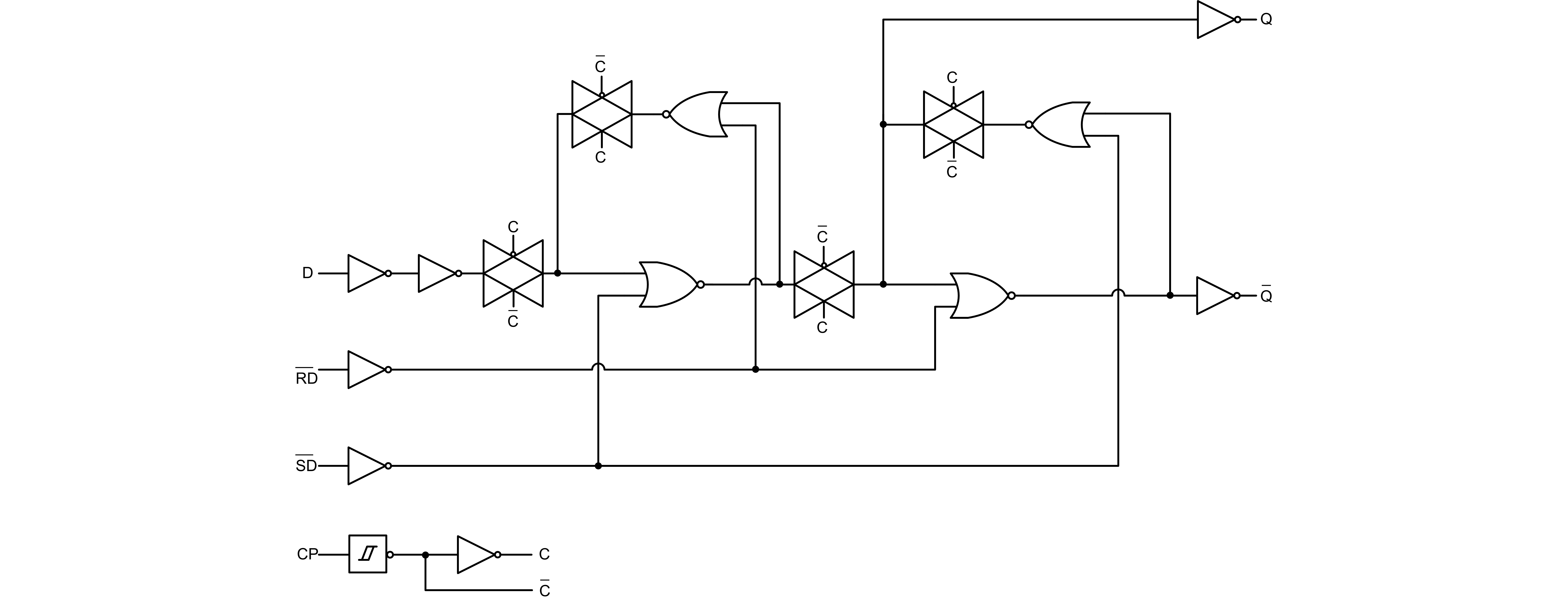

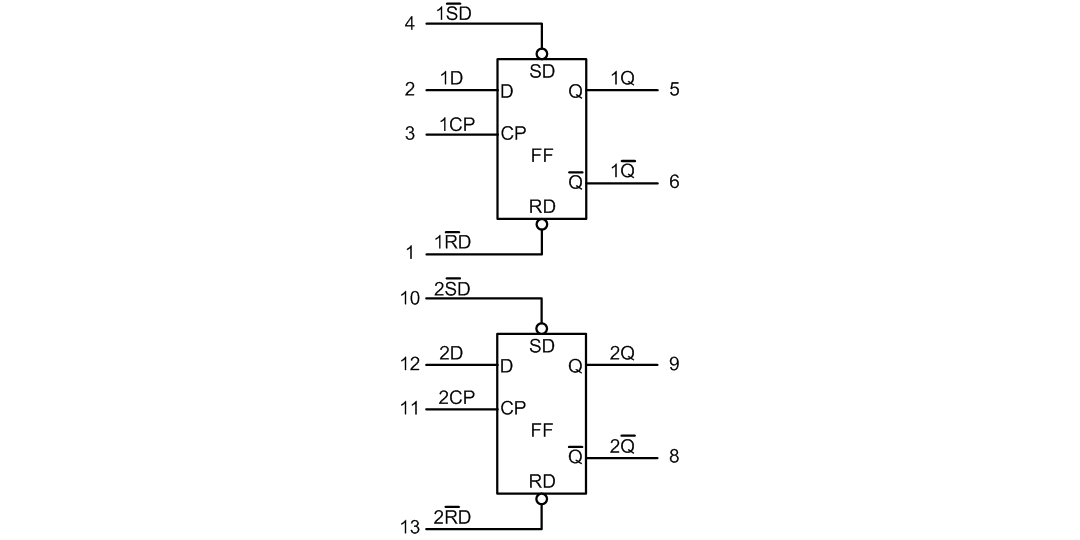

    Block Diagram
