    SDH8302
    CURRENT MODE PWM CONTROLLER

    SDH8302 is a current mode PWM controller with built-in high-voltage MOSFET used for SMPS.

    SDH8302 has a built-in high-voltage startup function. It enters burst mode at light load to reduce the system standby power dissipation; the frequency reduction function optimizes the conversion efficiency at light load; frequency jitter improves EMI performance; the soft startup function reduces the device stress to avoid transformer saturation.

    SDH8302 integrates complete protections, including VDD undervoltage protection, VDD overvoltage protection, lead edge blanking, output short-circuit protection, over current protection, over temperature protection, etc.

    Main feature

    • High-voltage startup

    • Burst mode at light load

    • Frequency reduction

    • Frequency jitter

    • Soft startup

    • VDD undervoltage protection

    • VDD overvoltage protection

    • Lead edge blanking

    • Output short-circuit protection

    • Over current protection

    • Over temperature protection


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
    SDH8302 DIP-8-300-2.54 SDH8302 Halogen free Tube

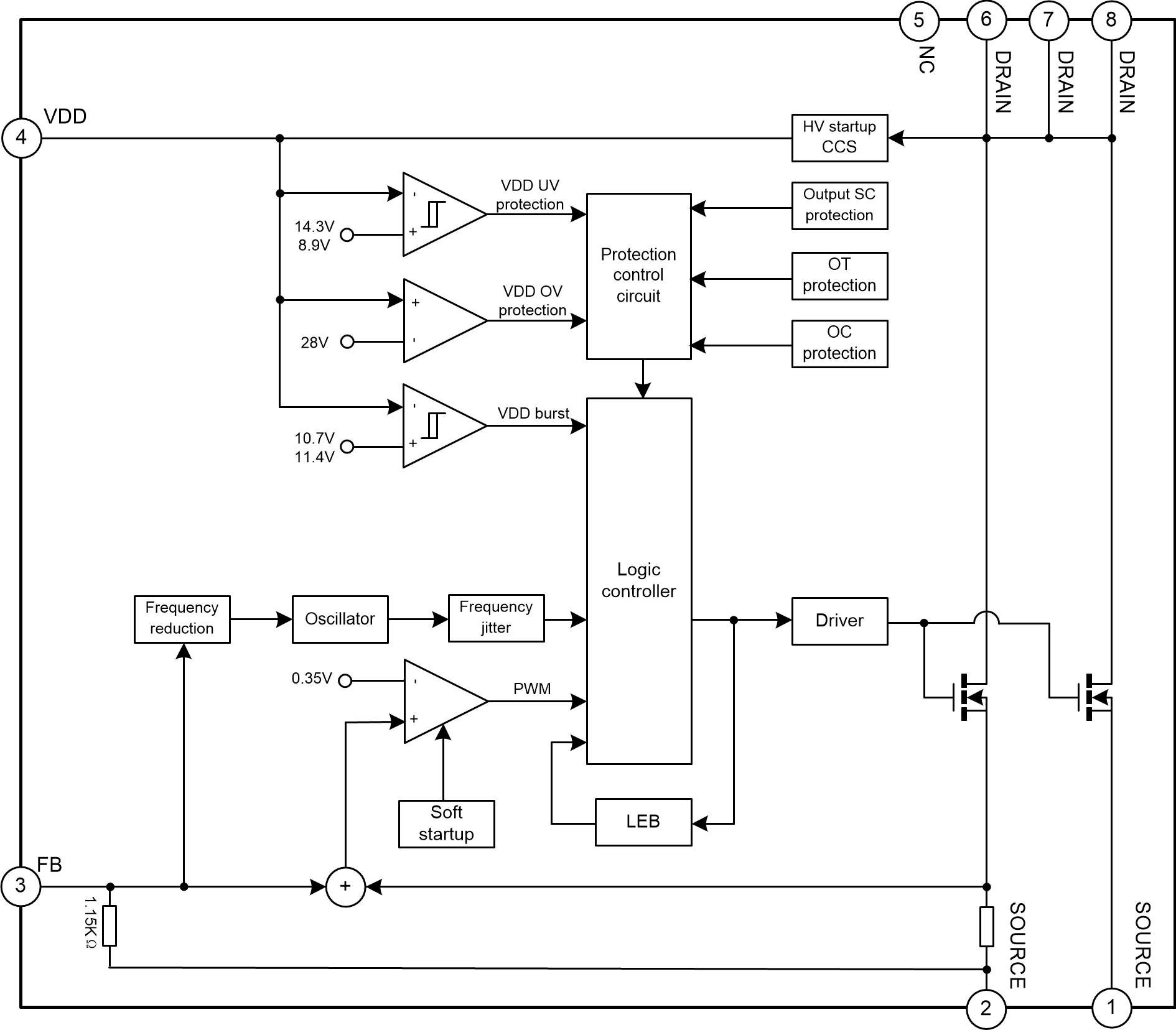

    Block Diagram
